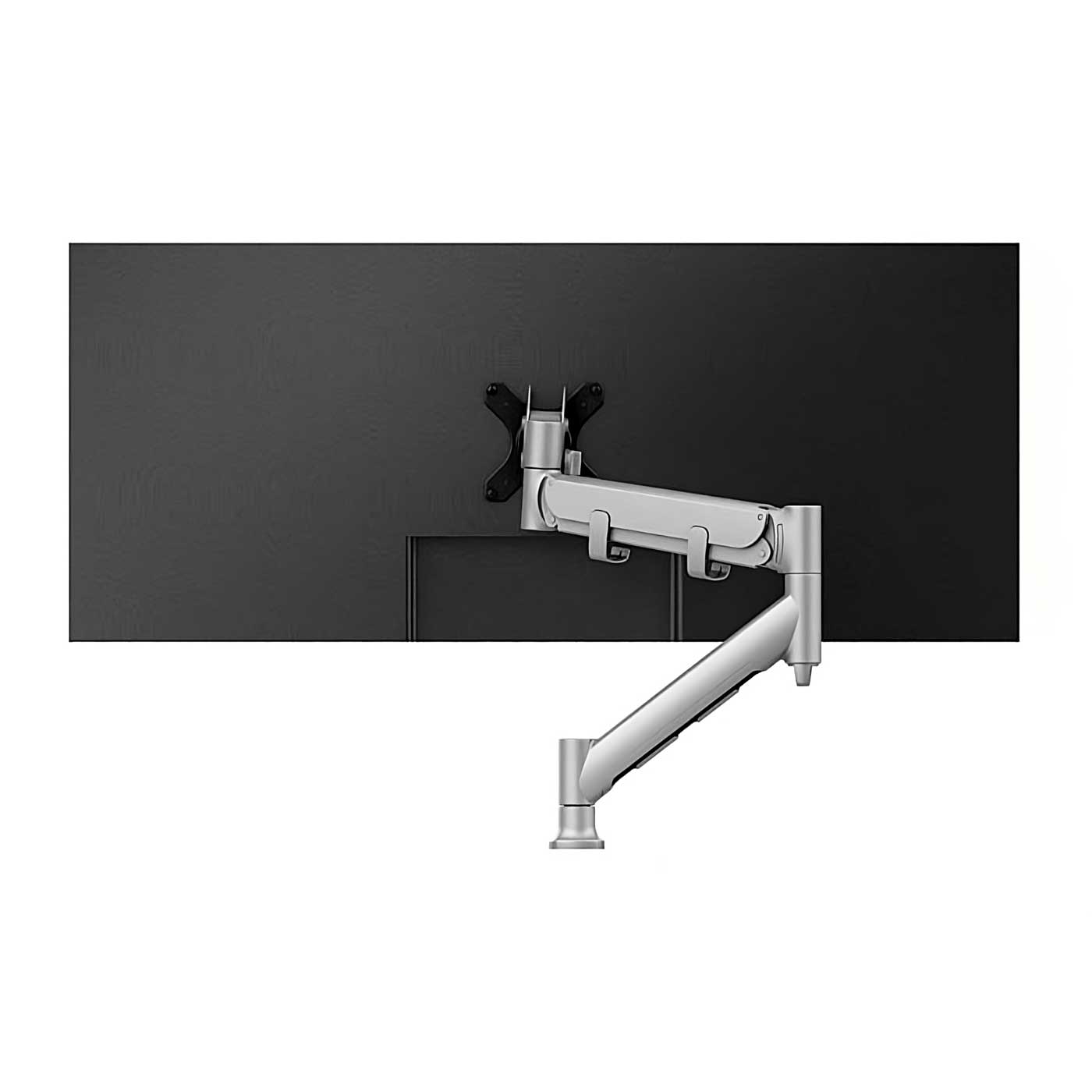

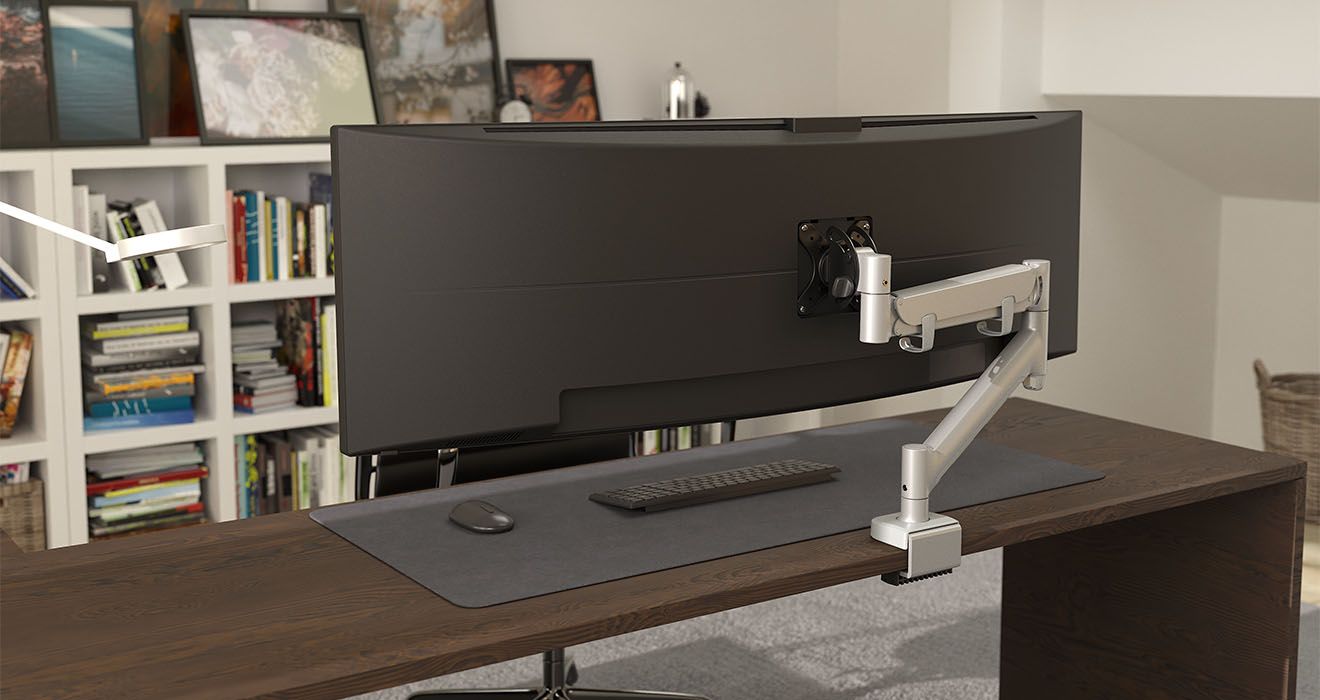

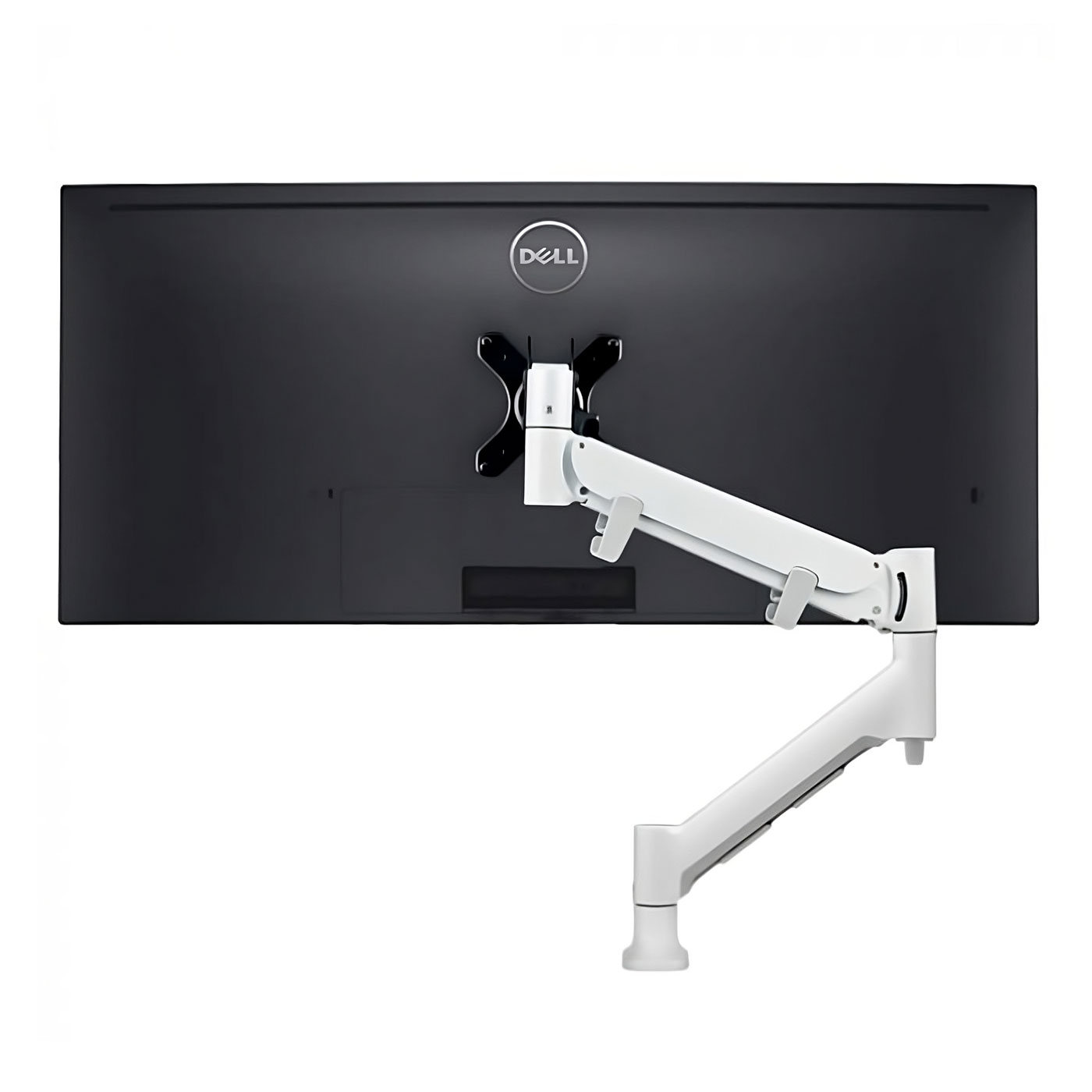

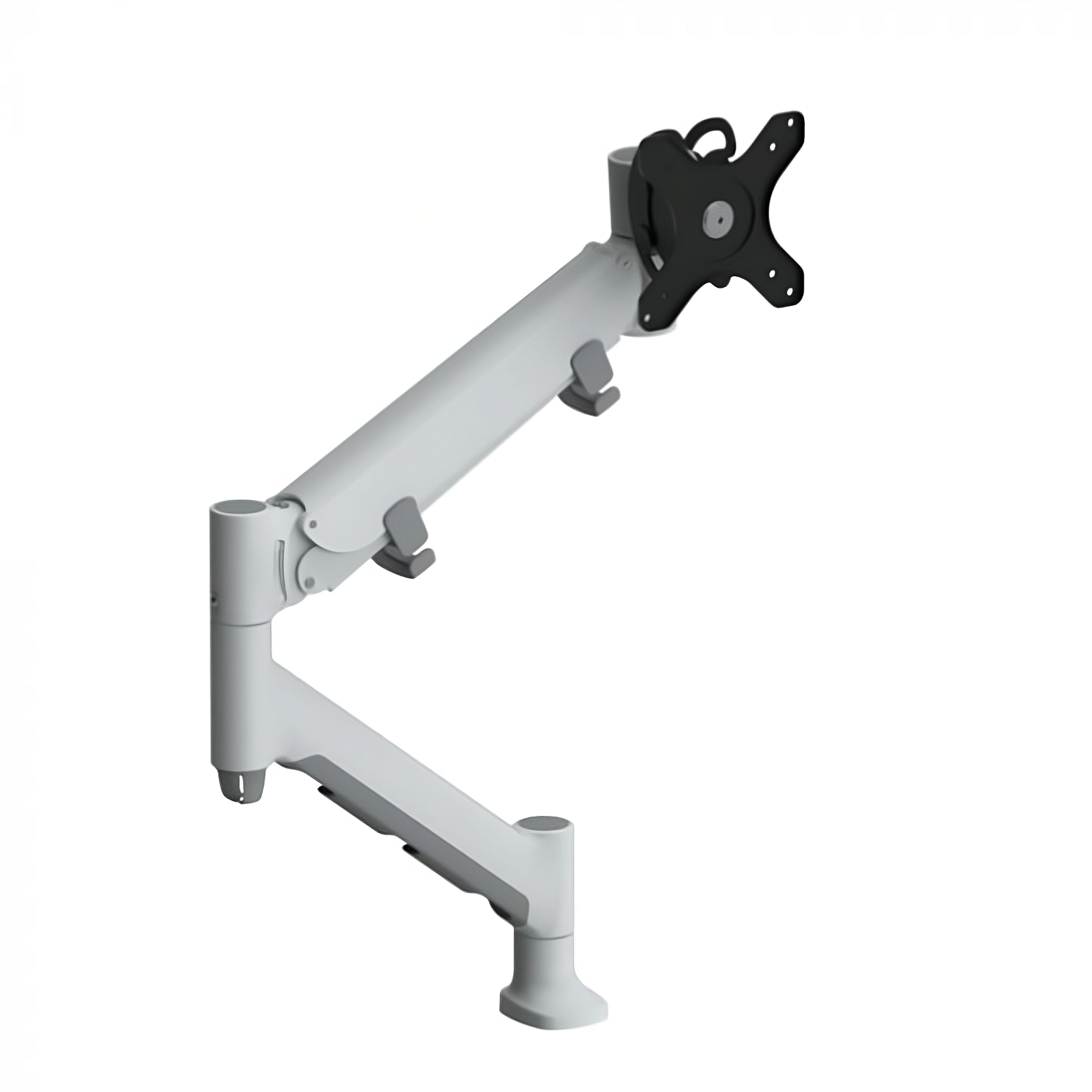

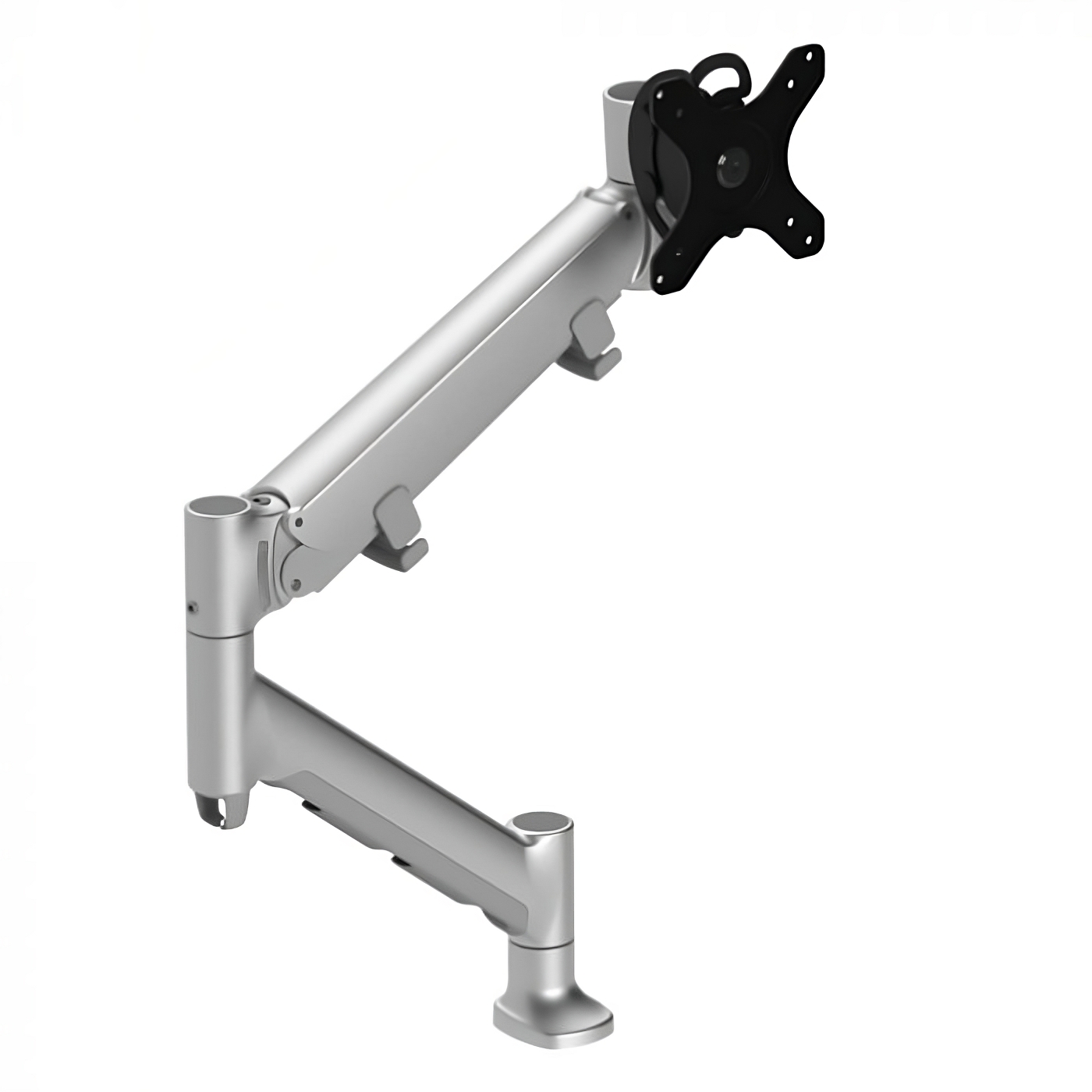

AWMS-HXB Heavy-Duty Monitor Arm
AWMS-HXB is designed for flat panel monitors 6kg to 16kg (13lb to 35lb) and curved displays to 12kg (26.5lb). Bigger, heavier, & curved displays plus all-in-one PCs suit this monitor arm.
The dynamic arm is spring-assisted with three points of articulation for effortless finger-tip adjustment. The built-in visual tension gauge is just one of the installer-friendly features, to streamline multiple installations during workspace projects. It also features an integrated rotation stopper to prevent interference with panels and walls. Built from lightweight and durable materials, the mount can be recycled at the end of its life.
Choose me for:
- Heavier devices
- Dynamic function
- Focal distance control
To purchase the AWMS-HXB MONITOR ARM, please contact our Sydney showroom.
Product Enquiry
Share
Specifications
-
Warranty
10 Years
-
Product specifications
- For heavier monitors & devices:
- Flat 13lb to 35lb (6kg to 16kg)
- Curved 13lb to 26.5lb (6kg to 12kg)
- Dynamic function:
- 17.5" (444mm) horizontal reach
- 13.5" (342mm) vertical reach
- Monitor tilt -35° to +55°
- Landscape-to-portrait rotation
- VESA 75x75 & 100x100
- Adaptor AC-AP-2020 for 200x100 or 200x200
- Designed for ergonomic excellent & sleek esthetics
- Silver, black, or white finish
- For heavier monitors & devices:
-
Installation optimised
- Simple assembly using modular parts
- Spring-tension visual gauge to streamline multiple desk installations
- Built-in 180° rotation limiter to prevent interference with walls or desk partitions
- Choice of desk mounting options
- Advanced cable management
-
Solution includes
- 1 x AWM-LTH Heavy duty tilt head
- 1 x AWM-AHX dynamic arm
- 1 x AWM-LB mounting base
- Your choice of desk fixings
