Atom USB Charging Module 2x 3A
Atom Compact Fast Charging USB Module 2 x 3A.
Tiny, Verstatile and Powerful.

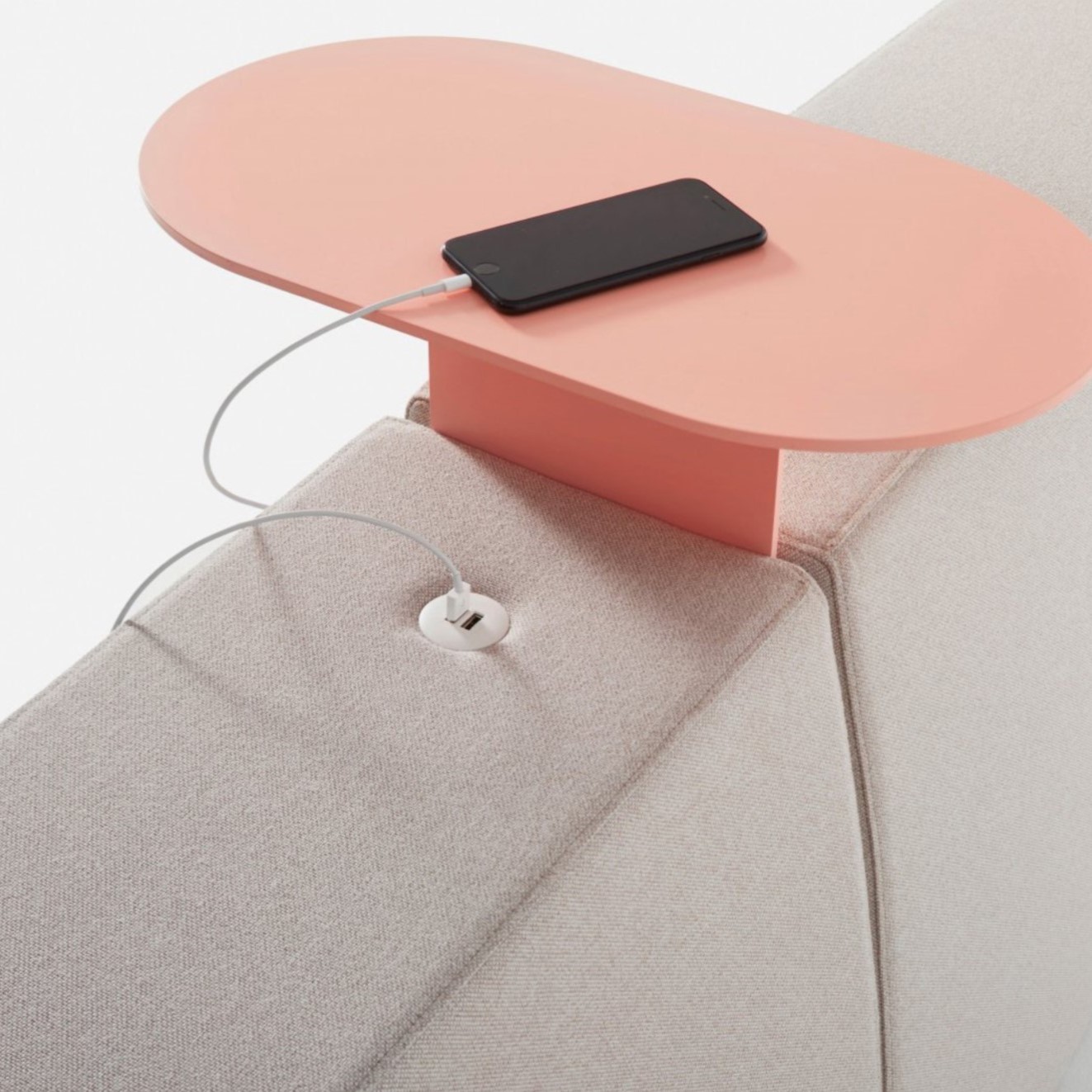

ATOM delivers USB Fast Charging in a minimalistic housing designed to integrate seamlessly into loose
furniture, personal workstations and collaborative/shared areas.
ATOM features a intuitive self-fastening paddle design allowing installers to surface-fit the unit without the needfor a bottom fastening ring, reducing installation time onsite.

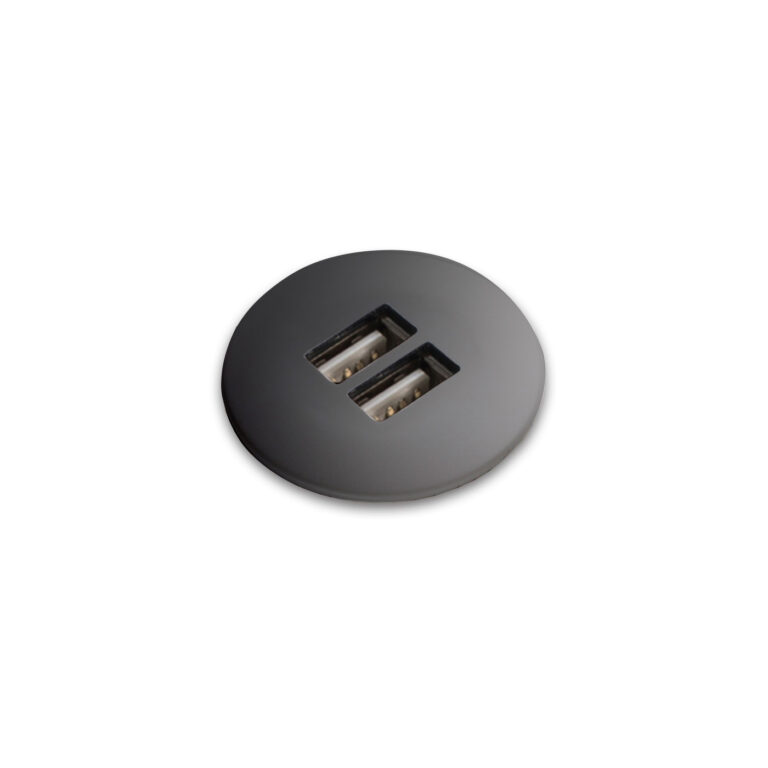

Colours Available: Black and White
To purchase the Atom USB Charging Module, please contact our Sydney showroom.
Product Enquiry
Share
Features
- Tiny external fascia diameter of 42mm.
- Powerful 6A Qualcomm® Quick Charge™ module.
- Self fastening ‘Paddle’ design allows surface-top install without the need of a bottom fastening ring.
- Under-desk mounting bracket available.
- Daisy-chain capability (subject to power requirement).
Technical Data
- Input: 12V DC, 3A
- Max output total (combined): 5V DC, 6A
- USB outlets: 2 x USB-A
- Standby power: 0.4W @ 12V
- Short circuit protection: USB will shut down if short circuit detected and will recover once short circuit removed.
- Operating temperature range: 0-40C
- Compliance: CISPR32:2015
USB-A Ports
- Overcurrent Protection
- Input: > 3A
- Output: 3.2A ~ 4.5A (per port)
Port 1
- Normal: 5V / 2.4A max; D+D – auto identify BC 1.2 / Samsung / Apple
- QC3.0: 3.6-6.5V / 3A max; 6.5 - 9V / 2A; 9V - 12V / 1.5A
- QC2.0: 9V / 2A; 12V / 1.5A
Port 2
- Normal 5V / 2.4A max; D+D – auto identify BC 1.2 / Samsung / Apple
- QC3.0 3.6-6.5V / 3A max; 6.5 - 9V / 2A; 9V - 12V / 1.5A
- QC2.0 9V / 2A; 12V / 1.5A
